ZMC-SFR-CH
This machine is the spot breaks the flat bag and rolling vest bag. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.
Enquiry about ZMC-SFR-CH
- Description
Description

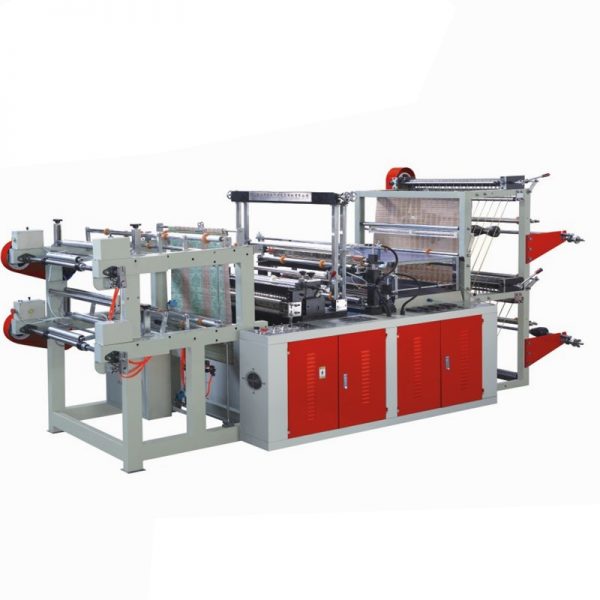

Semi-automatic rolling flat bag making machine
This machine is the spot breaks the flat bag and rolling vest bag. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.
SPECIFICATIONS
| Model | ZMC-SFR-CH | ||
| 600 | 700 | 800 | |
| Width of bag-making(mm) | 400mm | 600mm | 700mm |
| Length of bag-making(mm) | 1200mm | 1200mm | 1200mm |
| Thickness of bag-making(mm) | 0.008-0.05mm | 0.008-0.05mm | 0.01-0.05mm |
| Speed of bag-makiing(pc/min) | 40-120pcs/min | 40-120pcs/min | 40-120pcs/min |
| Motor power(kw) | 1.1 | 1.5 | 1.5 |
| Electric heating power(kw) | 1.2 | 2 | 2.2 |
| Total power(kw) | 4.2 | 5 | 6.2 |
| Machine weight(kg) | 800 | 900 | 1000 |
| Overall Dimension | 3300×1100×1500 | 3300×1300×1500 | 3300×1400×1500 |
