ZMC-CHZD-J

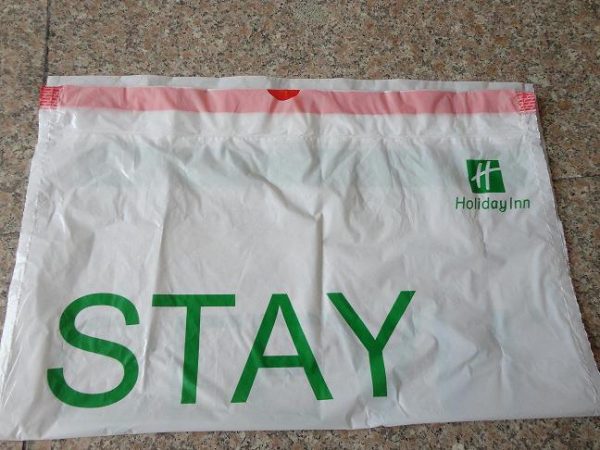

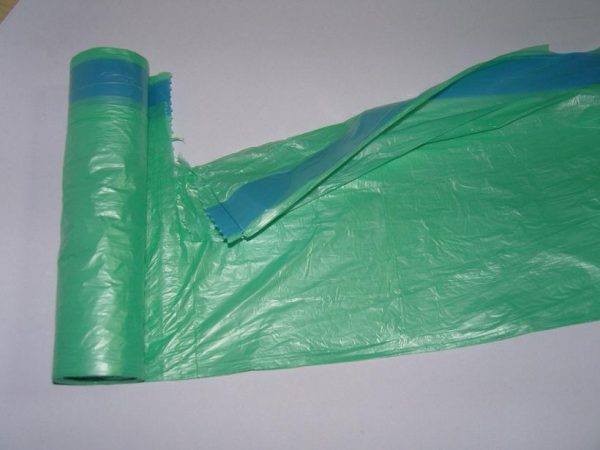

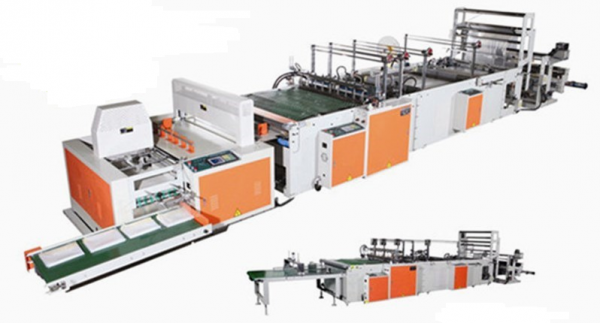

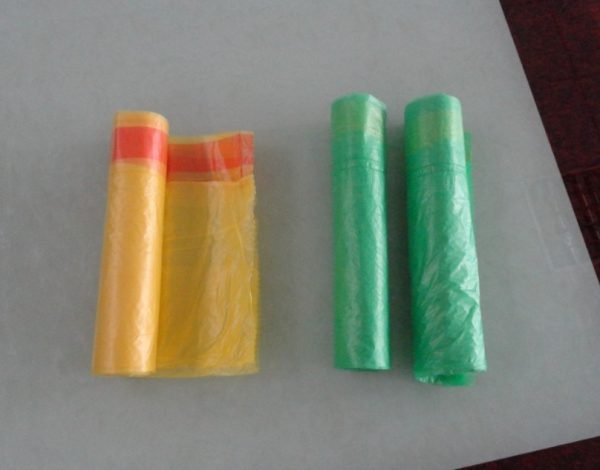

This machine is specially designed for the spot breaks the flat bag and rolling vest bag dual-purpose machine. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.
Enquiry about ZMC-CHZD-J
- Description
Description
This machine is specially designed for the spot breaks the flat bag and rolling vest bag dual-purpose machine. Using the computer control, step (servo) length system makes the sealing and cutting small errors. Electric eye tracking device enables printing bag position accurately. The machine produces LDPE HDPE film bag, is suitable for supermarkets and malls shopping.
| 型号Model | ZMC-CHZD-J | ||
| 600 | 700 | 800 | |
| 制袋宽度Width of bag-making(mm) | 400mm | 600mm | 700mm |
| 制袋长度Length of bag-making(mm) | 1200mm | 1200mm | 1200mm |
| 制袋厚度Thickness of bag-making(mm) | 0.008-0.05mm | 0.008-0.05mm | 0.01-0.05mm |
| 制袋速度Speed of bag-making(pc/min) | 40-120pcs/min | 40-120pcs/min | 40-120pcs/min |
| 主机功率Motor power(kw) | 1.1 | 1.5 | 1.5 |
| 加热功率Electric heating power(kw) | 1.2 | 2 | 2.2 |
| 总功率Total power(kw) | 4.2 | 5 | 6.2 |
| 机器重量 Machine weight(kg) | 800 | 900 | 1000 |
| 外形尺寸 | 3300×1100×1500 | 3300×1300×1500 | 3300×1400×1500 |
