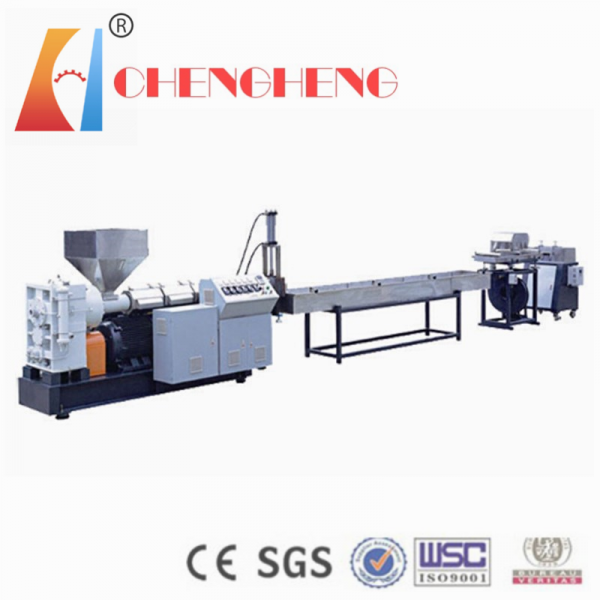

A plastic granulator is an equipment to produce plastic glumes by extruding, cooling and cutting particles of polyethylene (plastic film, beverage bottle, lining bag, etc.) or polypropylene (old woven bag, packing bag, tie rope, non-woven fabric, etc.).

Category:
  • Description

Description

A plastic granulator is an equipment to produce plastic glumes by extruding, cooling and cutting particles of polyethylene (plastic film, beverage bottle, lining bag, etc.) or polypropylene (old woven bag, packing bag, tie rope, non-woven fabric, etc.). The production of spikelets is widely used and is the preferred model for waste plastics recycling industry.

Characteristics:

This equipment is matched with the crushing machine cutting machine. The broken and cleaned plastic, without air drying, can be directly put into the extrusion granulation, the process is simple, the process is advanced, and it is suitable for the different waste plastics using the electric network (which can choose the hydraulic net changing device). The heater of automatic temperature control and national energy saving patent is less electricity, no pollution, and high automation.

 参数型号model ZMC-CHSB-110 ZMC-CHSB-130 ZMC-CHSB-150 ZMC-CHSB-180 ZMC-CHSB-210
螺杆直径(mm)  screw diameter (mm) 110 130 150 180 210
功率(kw)

power (kw)

18.5 22 30 37 45
螺杆转速(r/min) screw speed (r/min) 55-60 50-55 45-50 40-45 35-40
换网电机功率(kw)change net motor power (kw) 1.5 1.5 1.5 1.5 2.2
最大生产能力(kg/h)maximum production capacity Granulator power 80 100 150 200 250
配套破碎/清洗机功率 supporting crusher / cleaning machine power 18.5/7.5 18.5/7.5 18.5/11 22/11 30/15
破碎清洗能力(kg/h) crushing cleaning capability (kg/h) 400 400 450 500 600
3P380V50HZ电源整机装机功率3P380V50HZ power supply machine power 60 80 100 120 140
