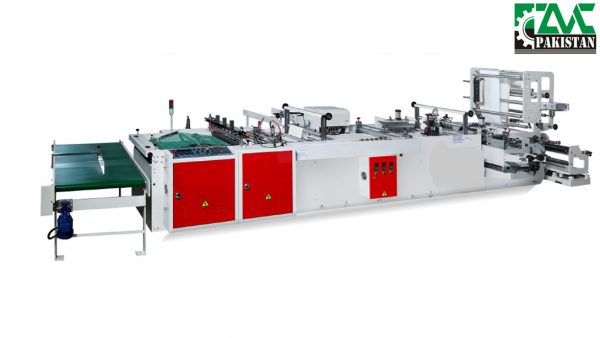

ZMC-850-S3
Side center sleeter (2) Out lip flap 3″ (3) Double inside flap 3″ (4) Bottom gassed 3″ (5) Center cutter (6) Single sealing Dai LDPE (7) Single film stand with Air Shaft 74 x 900mm (8) 1.5kw Servo Motor (9) Sick color sensor (Germany).
Enquiry about ZMC-850-S3
- Description
Description
Standard Accessories
Side center sleeter (2) Out lip flap 3″ (3) Double inside flap 3″ (4) Bottom gassed 3″ (5) Center cutter (6) Single sealing Dai LDPE (7) Single film stand with Air Shaft 74 x 900mm (8) 1.5kw Servo Motor (9) Sick color sensor (Germany).
Optional Attachment
2/ Two Preheating Sealing
Handel Cut Dai 20 x 80
Invert Flap Sealing
EPC Trolley, (GK-10 & Actuator TD3-90-136)
Powder Break 2.5 kg
2 on one bag (Hole Punch 6 x 75 mm)
Folder with Tapper Tension Control
2nd Servo 1kw
SPECIFICATION:
Max Bag Length: 80~700 mm.
Max Bag Width: 800.mm
Production Speed with Side Seal: 30 – 190 Pcs/min.
Type of Film: LDPE, LLDPE, HDPE, PP
Machine Dimension (L x W x H): 380 x 160 x 150 cm
Power Required: 8 KW / AC 3800. V 50 Hz.
ACCESSORIES:
| Color Sensor (SICK, Germany) 1 Nos.
AC Servo Motor 1.5KW (Delta, Taiwan) 1 Nos. High-Speed Computer (MZH, China) 1 Nos. Handel Cut Dai 20 x 80 1 Nos. EPC Trolley, (GK-10 & Actuator TD3-90-136) 1 Nos. Powder Break 2.5 kg 1 Nos. Folder with Tapper Tension Control 1 Nos. Inverter 0.75 KW (Kewo, China) 2 Nos. Inverter 1.5 KW (Kewo, China) 1 Nos. Anti-Static Transformer And Rod (Pakistan) 1 Set. |
