ZMC-850-S2 (DHE)
This bag making machine is suitable for side sealing bag from tube film or sheet folded film .according to set the number of each volume, auto stop and running after given pause time, the machine operation is very easy .customer can improve production efficiency, and it is a good choice for reducing the labor cost.
Enquiry about ZMC-850-S2 (DHE)
- Description
Description

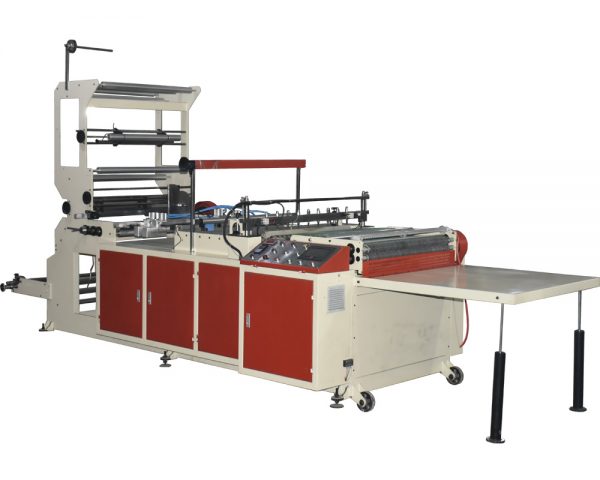

Side Seal Machine Model # ZMC-850-S2 (DHE)
Usage and features:
This bag making machine is suitable for side sealing bag from tube film or sheet folded film .according to set number of each volume, auto stop and running after given paus time ,the machine operation is very easy .customer can improve production efficiency, and it is a good choice for reduce the labor cost .
Standard Accessories
Side center sleeter (2) Out lip flap 3″ with Tape (3) Double in side flap 3″ (4) Bottom gassed 3″ (5) Center cutter (6) Single sealing Dai LDPE (7) Single film stand with Manual Shaft 32mm (8) 1.0kw Servo Motor (9) Sick color sensor (Germany).
Optional Attachment
DIE CUT 20 X 80 mm
Hole punch 6mm x 75mm depth
EPC Trolley ( GK-71 & Synchronies Motor )
Main Technical Parameters:
Model ZMC-850-S2
Producing length 100-700mm
Producing width 300-800mm
Max. Producing speed 50p/min or 180p/min
Total power 5.5Kw
Film of Thickness 0.03-0.08mm
Nature of film HDPE, LDPE, CPP, BOPP, PVC,
Max. Unwinding dia 600mm
Weight 750Kgs
Overall size L x W x H 427 x 157 x 147cm
